StarEFX Modular Acoustic Starlight Panels

Details and specifications

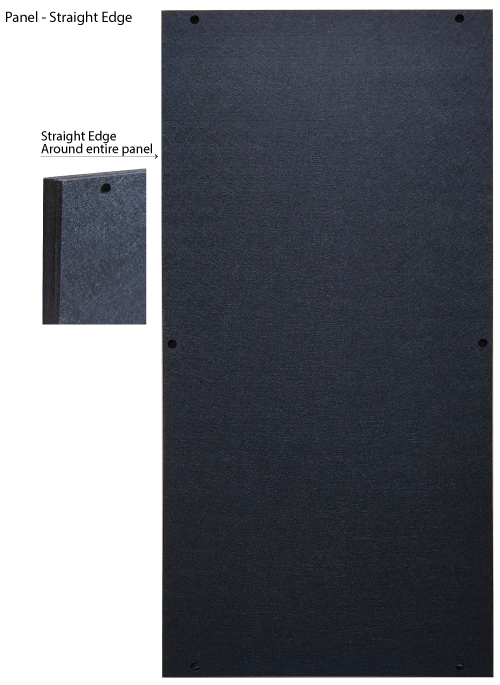

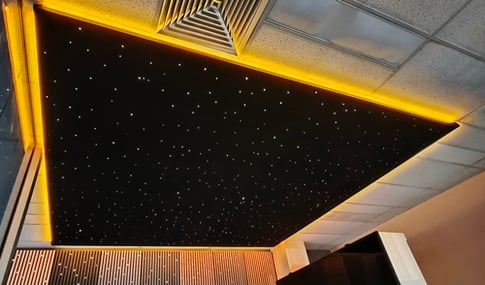

The StarEFX panel adds a stunning starry light feature while benefiting the sound acoustics. Fitted to the ceiling or walls with 6 screws the acoustic panels shimmer a white light or with the optional controller colour-changing shimmering stars. The StarEFX sky can be brought into an environment with a simple installation process for an amazing display, a great feature when entertaining or needing extra acoustic enhancement to a room or space.

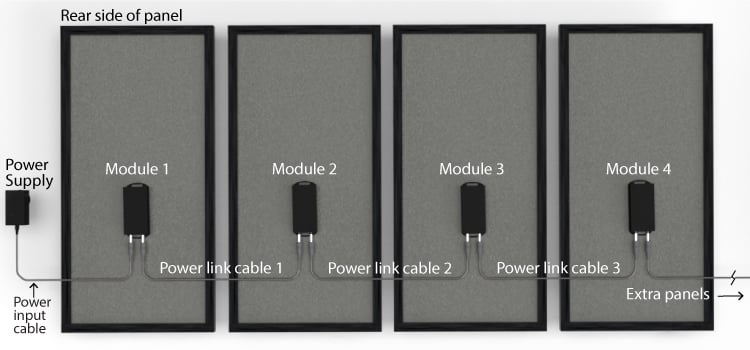

A low voltage cable is used to connect the modular panels in a daisy chain configuration, up to 24 panels can be connected from one power supply. When connected to power in standalone mode, the StarEFX panel displays a random pattern of shimmering white fibre optic stars. The optional controller activates the RGBW for colour selection, colours can be selected with the wireless RF remote control.

Applications and use

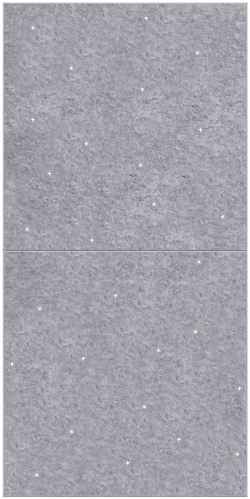

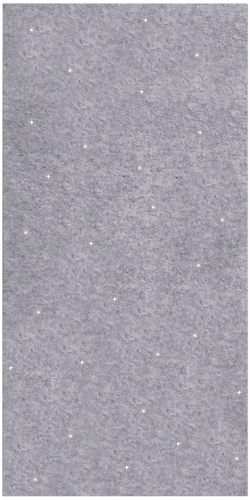

Each panel has its own light source that supplies light to the randomly patterned fibre optic stars. As standard, the fibres shimmer white in colour while the optional control module allows users to select different colours. It is possible to cut the panels to size using a sharp box cutter, no fibres need to be lost as they're simply pulled out from the panel, with the bent part of the fibre cut and re-inserted back into the panel.

Controller mode (optional)
When you connect the controller module, it allows you to select different colours and choose from two program modes. This RF wireless remote also enables you to turn the power on and off. Additionally, for added convenience, you can install a wall switch that will turn the starlights on and off.

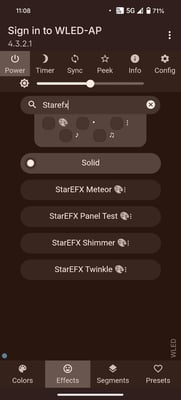

Program settings
1. White (WH) with shimmer effect
2. Blue (BLU) with shimmer effect
3. VT, YL, GN, BLU, WH (Pauses on colour for 8 sec, with a 5-sec transition into next colour) with shimmer effect
4.VT, YL, GN, BLU, WH (Pauses on colour for 20 sec, with a 10-sec transition into next colour) with shimmer effect
5. Green (GN) with shimmer effect
6. Yellow (YL) with shimmer effect
7. Violet (VT)with shimmer effect

Components and part numbers

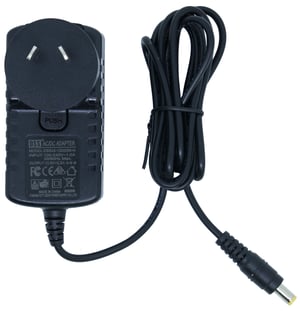

The standalone system of 'white colour starlights', requires only the power supply along with the StarEFX panels to be ordered. In this configuration, one power supply can easily power up to 24 panels, providing you with an efficient standalone setup. However, for colour-changing starlights, the optional controller module is required. This will enable you to enjoy the benefits of a more versatile and dynamic lighting system.

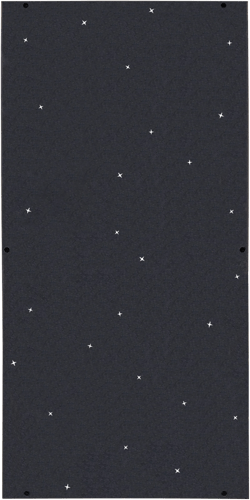

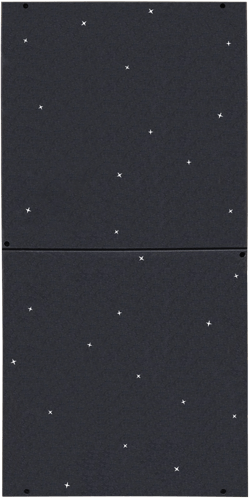

Each panel comes with the fibre optic stars pre-loaded into the panel.
*Note: LightEFX does not supply power outlets or wall switches.

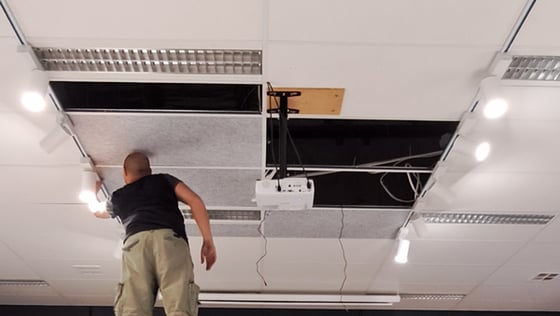

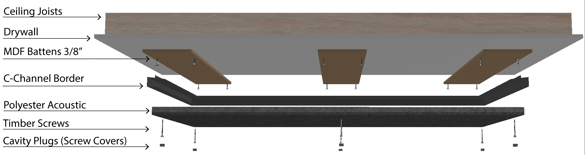

Installation quick guide
1. Remove the panel from its packaging and note the two low voltage cables -
2. Raise the panel towards the ceiling, and connect cable from the power supply into the driver module.
3. Conceal the connected cable onto the panel and lift the panel into the marked out position ready for fixing.

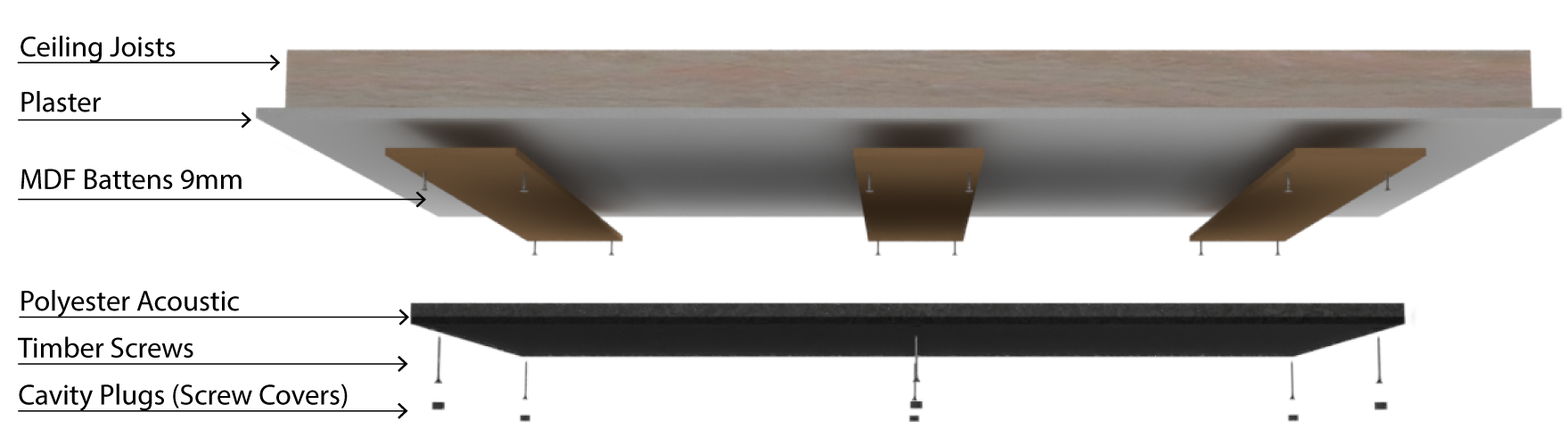

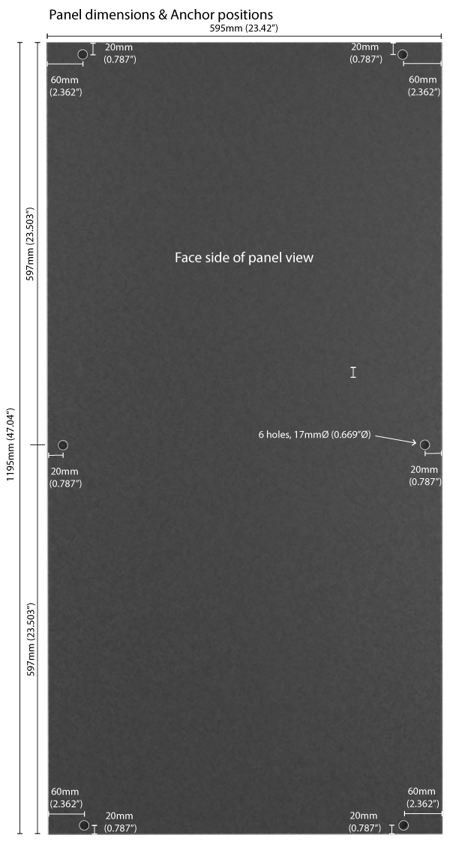

4. Fix the panel with the 6 anchors using a phillips screwdriver.

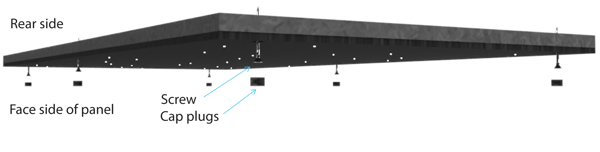

5. Insert the 6 plugs to cover the screws.
5. Turn on StarEFX lights
Note:
- Over tensioning the screws will result in piercing through the panel's border. Be sure to fix the screws without over tensioning.
