LightEFX - Transparent Black

1001DMX Illuminator
User Manual

PART No. FOC-ILL-1001DMX Illuminator

Safety Instructions
- Read the entire manual before connecting the illuminator to a power source.
- Installation completed by a licensed electrician.
- Keep out of wet areas.
- Do NOT operate when the ambient temperature exceeds 40ºC.
- All servicing is to be carried out by an authorised service agent.

Index:
1. Technical Data
2. Installation
3. Communication
3a. DMX512
3b. Wireless Remote
3c. Standalone
4. Communication Wiring
5. Harness Installation
6. Maintenance
7. Troubleshooting

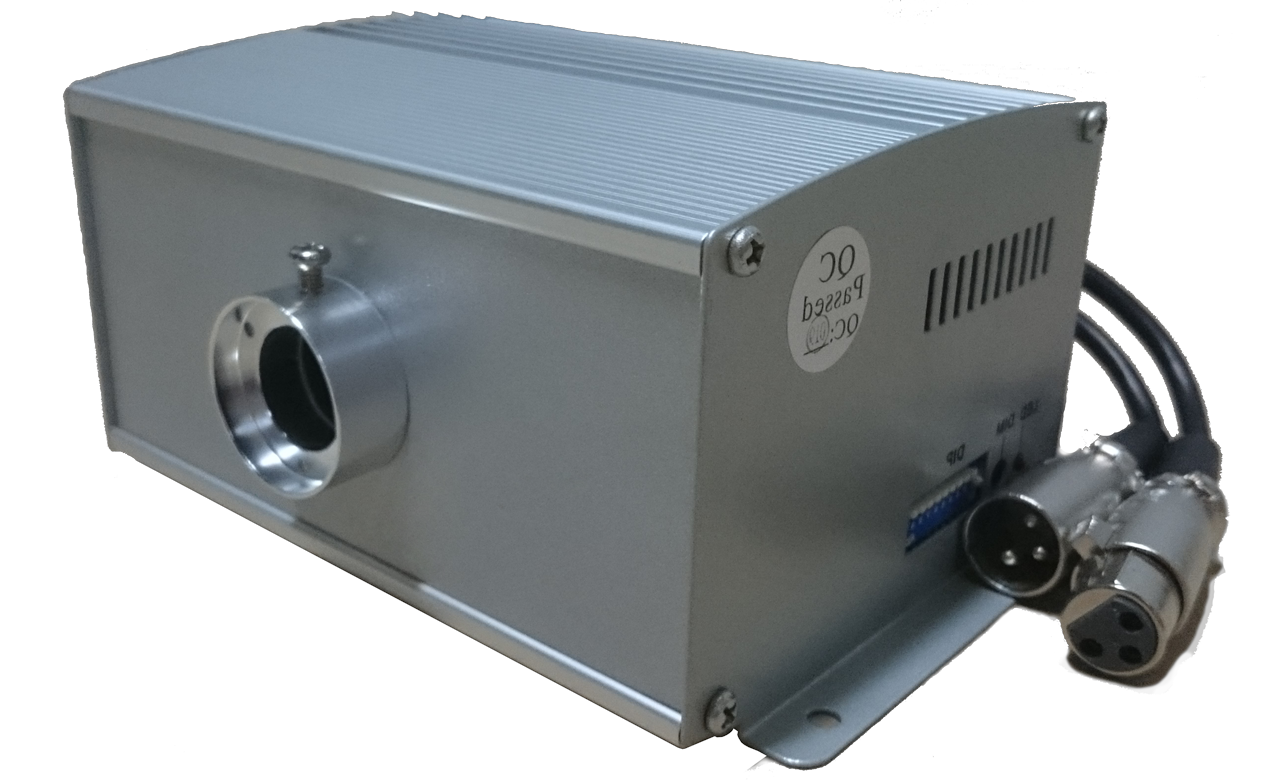

1001DMX (1280x780)-1

1. Technical Data

Voltage: 12VDC
Amp draw: 1.1
Power: 15 watts
Light source: 10 watt LED
Colour temperature: 6000ºK (other colour temperature available)
LED lifespan: 50,000 hours for LED
Motors:  2
Colour wheel: 6 colour (sky-blue, green, yellow, blue, violet, white)
Animation wheel: Twinkle
Physical size (L x W x H): 165 x 126 x 80 (mm) | 6.49" x 4.96" x 3.15"
Gross weight: 0.6kg | 1.32Lb
IP rating: IP30
Operating temperature: 40ºC maximum | 104ºF
Harness aperture:  14mm or 17mm ID | 0.55" or 0.67"
DMX512 address: 255 maximum programmable addresses
Radio frequency: 433Mhz wireless
Remote battery type: A23

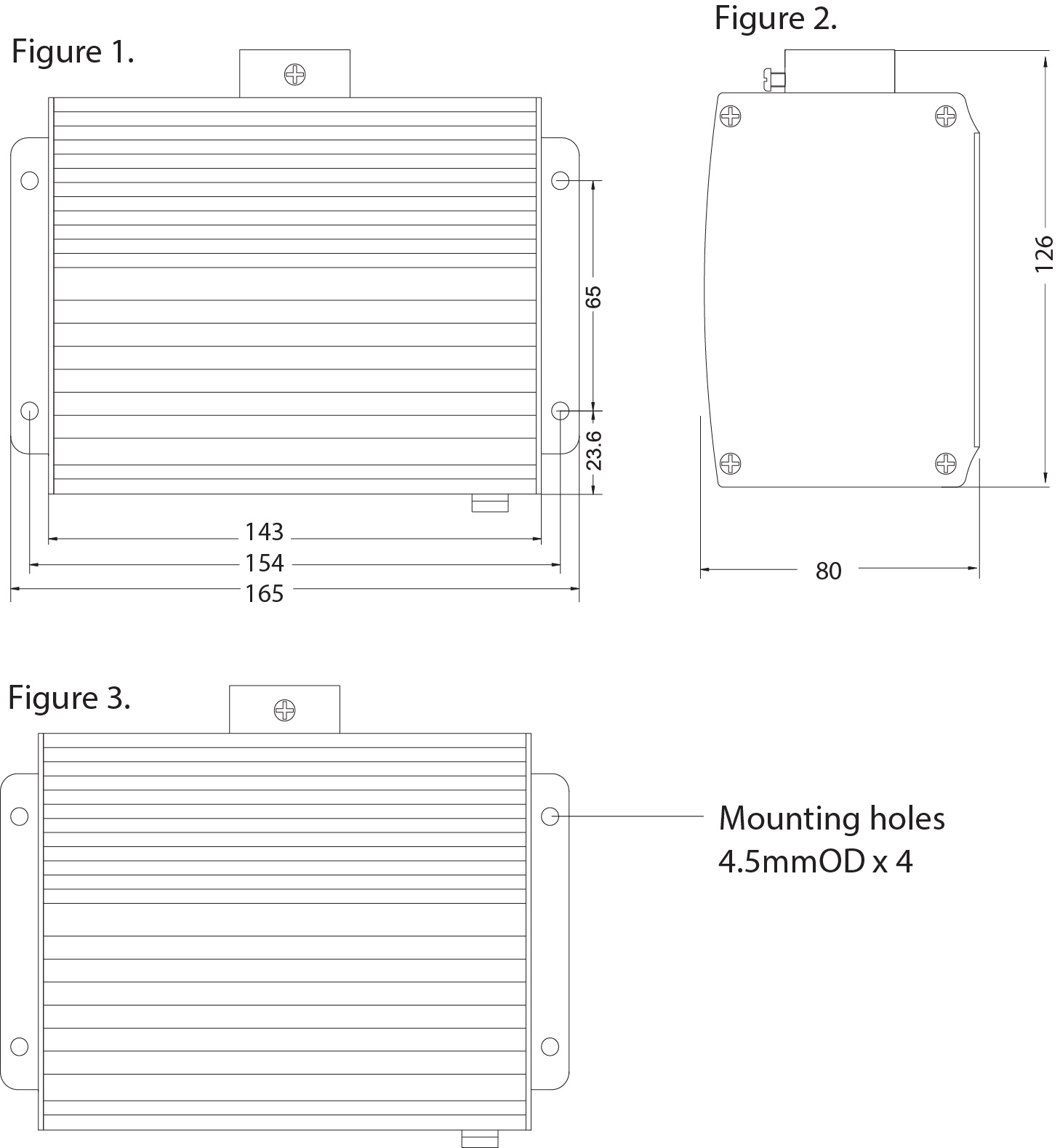

1001dmx 1

2. Installation
(1) Installation to be completed by a competent person or licensed electrician.
(2) Choose the installation site: Select a suitable location for the illuminator that is easily accessible, well-ventilated, and protected from direct sunlight, moisture, and excessive heat. The chosen site should also allow for easy access to a power outlet and provide sufficient space for the fiber cables to be connected and routed.
(3) Mount the illuminator: Securely mount the illuminator using appropriate screws and wall anchors, (e.g., drywall, wood, or concrete). Ensure that the mounting hardware is capable of supporting the weight of the illuminator.
(4) Connect fiber harness: Carefully insert the fiber cables into the designated ports on the illuminator, ensuring a snug fit. Avoid bending the cables excessively or applying excessive force, as this could damage the fibers.
(5) Connect the power supply: Connect the 12v power supply to the illuminator, ensuring that the power supply is compatible with the input voltage requirements of the illuminator. Plug the power supply into a suitable power outlet, following all local electrical codes and safety regulations.
(6) Test the system: Turn on the StarEFX™ illuminator and verify that all fiber ends are emitting light as intended. Test the color wheel, twinkle effect, and any wireless or DMX controls to ensure that the system is functioning correctly.
(7) Operate the illuminator through one of the communication modes (as per section 3).

Notes:
- The illuminator must be accessible after installation for servicing.
- Appropriate ventilation must be provided to ensure that the area of the installed illuminator is kept below the maximum temperature limit, a minimum flow rate of 40m3/h at 40ºC.
- The Illuminator should NEVER be placed into an air-restricted area or sealed enclosure.

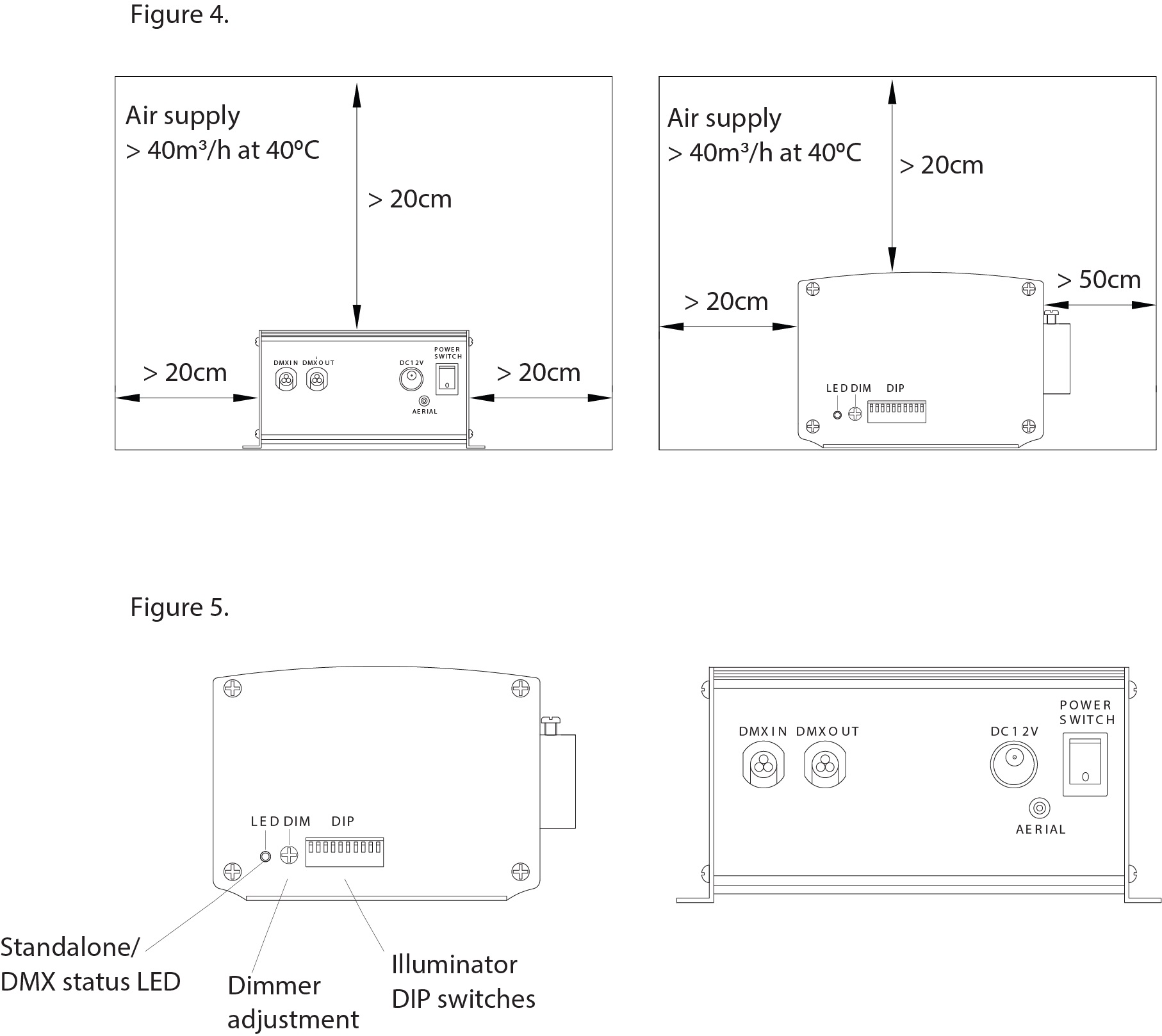

1001dmx 2

3. Communication

There are three independent modes of communication with the 5 watt series illuminator.

(A)      DMX512 mode. A DMX512 command is received from a DMX512 controller to operate the illuminator (refer to section 3a).

(B)      Standalone mode: The illuminator has a preset function which can control all connected slave illuminators (refer to section 3b).

(C)      Wireless mode: Controls illuminator functions via remote control (refer to section 3c)

3a. DMX512 Mode

To activate DMX512, set DIP switch 1 to ON position. All remaining DIP switches are to be in the OFF position.

C001: Colour    C002: Speed    C003: N/A    C004: Dimmer/Strobe

The DMX Status LED will blink if it is connected to a master controller or illuminator.

Channel Value DMX Function
001 000
003
054
075
096
117
128
160
180
200
220
255		 White
Sky blue
Green
Yellow
Blue
Violet
Extreme 6 colour/twinkle rotation
Very Fast 6 colour/twinkle rotation
Fast 6 colour/twinkle rotation
Medium 6 colour/twinkle rotation
Slow 6 colour/twinkle rotation
Slowest 6 colour/twinkle rotation
002 000
255		 Fast scene change
Slow scene change
003 000
032
100
150
255		 No Twinkle rotation
Fast Twinkle rotation
Medium Twinkle rotation
Slow Twinkle rotation
Slowest Twinkle rotation
004 000
034
064
094
127
128
200
255		 Lamp OFF
20% Bright
40% Bright
75% Bright
100% Bright
Fast strobe
Medium strobe
Slow strobe

For controlling via RS232 serial protocols, or other Home Automation systems, refer to the LightEFX user manual "FOC-DMX-SERIAL - Serial to DMX interface module" which can be downloaded from here

3b. Standalone Mode

Standalone illuminators will need to be configured by LightEFX.
The powering ON and OFF of the illuminator will need to be done manually via other means i.e.. Light switch
The wireless mode will need to be disabled.

502dmx 3

3c. Wireless Mode

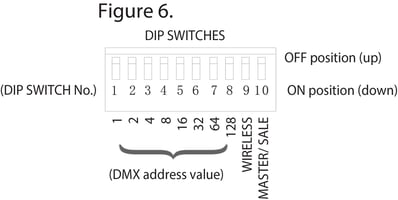

To activate the Wireless Mode, set DIP switches 9 and 10 to ON position.
All remaining DIP switches to be in the OFF position (refer to Figure 6.).

Value No. Remote Control Functions
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29		 White
Sky blue
Green
Yellow
Blue
Violet
White, Sky blue, Green, Yellow, Blue, Violet - 2 second pause.
White, Sky blue, Green, Yellow, Blue, Violet - 4 second pause.
6 Colour rotate slow
6 Colour rotate medium
6 Colour rotate fast
White & Twinkle slow
White & Twinkle medium
White & Twinkle fast
Sky-Blue & Twinkle fast
Green & Twinkle fast
Yellow & Twinkle fast
Blue & Twinkle slow
Blue & Twinkle medium
Blue & Twinkle fast
Violet & Twinkle fast
6 Colour skip 2 second pause & Twinkle  medium
6 Colour skip 4 second pause & Twinkle  fast
6 Colour rotate slow & Twinkle slow
6 Colour rotate slow & Twinkle medium
6 Colour rotate slow & Twinkle fast
6 Colour rotate medium & Twinkle slow
6 Colour rotate medium & Twinkle medium
6 Colour rotate medium & Twinkle fast

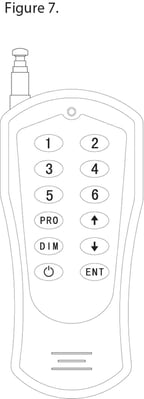

Operating remote control:
Turn ON and Off; Press
Selecting  a function; Press
Choose function by adding remote numbers to equal desired Value No.
(Eg: press button 2 times on the remote to equal Value No. 10).
Press  to save function to memory
Dimming; Press Press for brightness or for low intensity.



501dmx 4

4. Communication Wiring

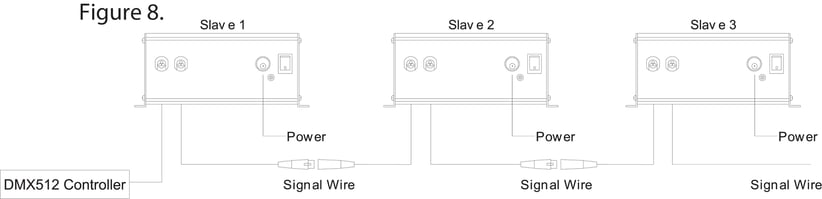

Connection master and slave illuminators for DMX512 external controller.



502dmx 7

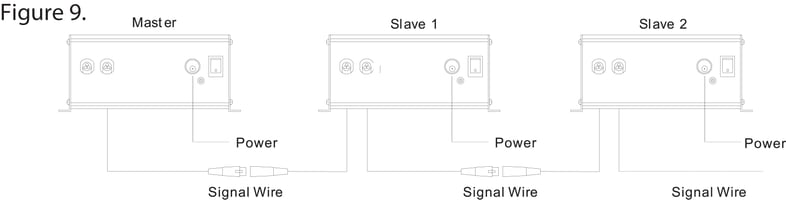

Connection master and slave illuminators for Standalone Mode.



502dmx 8

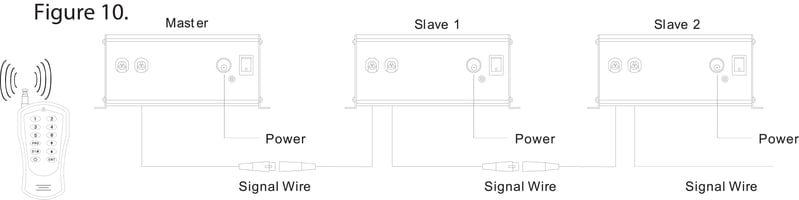

Connection master and slave illuminators for Wireless Mode.

502dmx 9

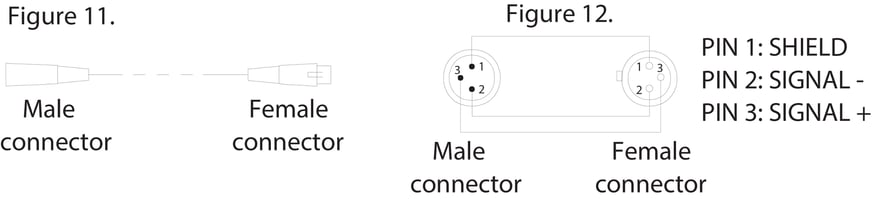

DMX512 communications extension cable.

502dmx 10

5. Harness Installation

(1) Cut the fibre cables to length using the appropriate harness size as per the table below:

Harness Size Fibre Optic Size (0Dmm) Approx. Fibres' Per Harness No.
14 0.50
0.75
1.00
1.50		 550
250
150
50
17 0.50
0.75
1.00
1.50		 850
400
215
80

(2) Peel off 100mm of PVC jacket (be careful not to cut into the fibre optic cores.)

(3) Unscrew the cable gland and insert fibre cores into the harness, so that the fibre cores protrude through the harness opening.
Tighten the cable gland to secure the fibre cables from moving.
Using a hot knife, cut through the protruded fibre cores making it flush with the harness.

(4) Insert the harness into the illuminator port and tighten he port screw using a screwdriver.



501dmx 9

6. Maintenance

(1) Turn off and remove the power cable from the power source.

(2) Vacuum dust build-up around the grill and port areas.

(3) All other servicing is to be carried out by an authorised service agent.

7. Troubleshooting

All servicing is to be carried out by an authorised service agent.

Error Possible Cause  Check
No light emitting from illuminator. Power source, power cable or electrical fault harness screwed in (remove and check).
Illuminator switch in OFF position.
LED is set to the lowest power setting.


Colour wheel is not synchronising.
Overheated.



Blown fuse.

DMX512 lost communication.		 Call electrician.
Remove harness and check light.
Disconnect mains power, open enclosure and check switch.
Set wireless remote "DIM" and "7."
DMX512 Channel not set correctly.

Re-power the illuminator and check if the colour wheel rotates one full rotation.
Cool down for 15 mins prior to applying power.
Relocate the illuminator to a cooler environment.

Check and replace if necessary.

Check DMX512 or the automation controller is operating, then re-power the illuminator.
Wireless remote not functioning. Flat batteries.
Distance to illuminator.
Illuminator in DMX512 Mode.
Wireless remote disabled.		 Replace remote control batteries - (A23 battery type).
Reduce remote to illuminator distance.
Call service agent.
Call service agent.
No colour changes. Fibre optics inserted too far into harness.
Program function not set via remote.
DMX512 value not set to DMX512 channel.
Stepper motor malfunction.		 Remove harness from the port screw, and check if the fibre optics are flush to the harness.
Set wireless remote press “PRO” then “1” and “0.”
DMX512 Channel not set correctly.
Re-power the illuminator and check if the colour wheel rotates one full rotation.
DMX512 commands
not functioning.		 Channel address not correct.
Channel value not correct.
Wiring connection.		 Check if sending correct DMX512 channel.
Check if sending correct DMX512 values.
Check DMX512 communication cables.
